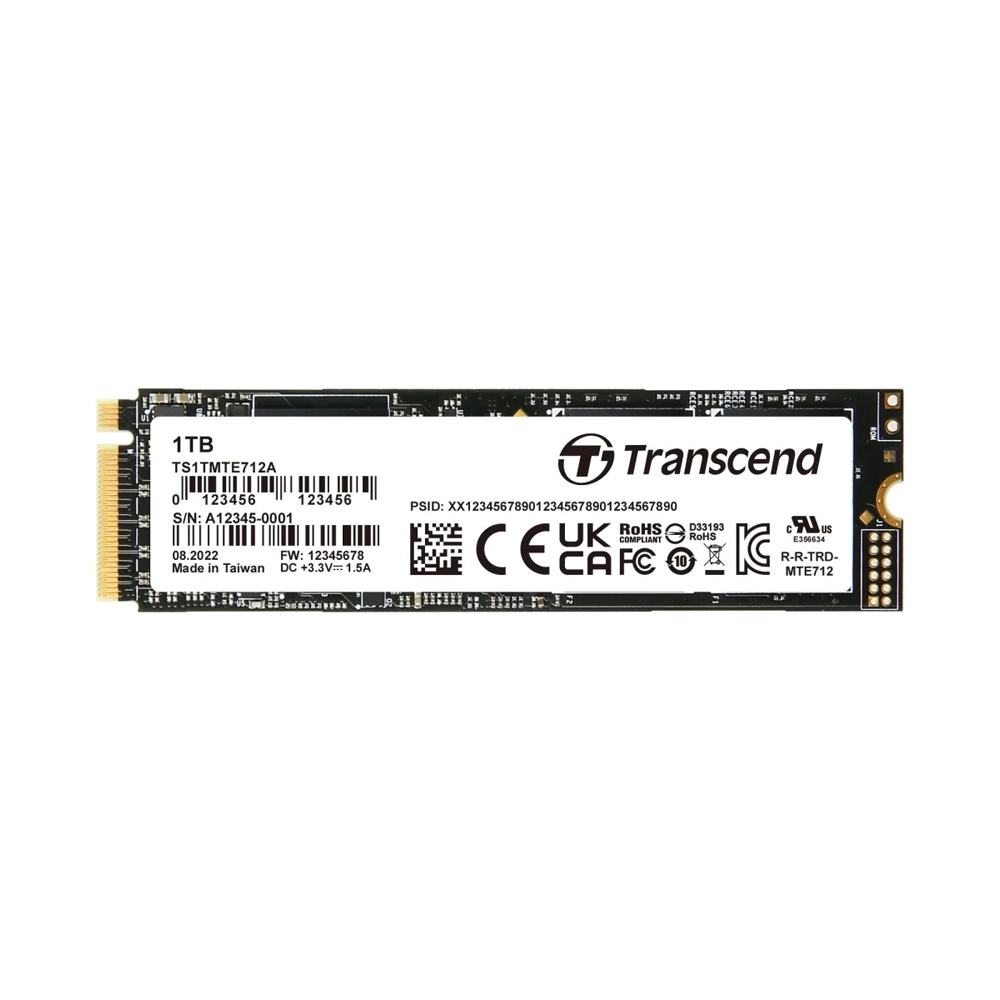

TRANSCEND 1TB M.2 2280 PCIe Gen4x4 NVMe SSD | High-Speed, Industrial-Grade Storage

Unlock extreme performance and unmatched reliability with the TRANSCEND 1TB M.2 2280 PCIe Gen4x4 NVMe SSD, engineered for both power users and industrial-grade applications. Leveraging cutting-edge PCIe Gen4x4 interface, NVMe 1.4 protocol, and BiCS5 3D TLC NAND technology, this SSD delivers high-speed data transfer, robust endurance, and superior temperature resistance—making it an ideal solution for everything from AI workloads and gaming to embedded systems and defense electronics.

---

🔥 Blazing-Fast PCIe Gen4x4 NVMe Performance

The TRANSCEND 1TB SSD utilizes PCIe Gen4x4 lanes, doubling the bandwidth over previous-generation Gen3 drives. This equates to sequential read/write speeds of up to 7,400/6,500 MB/s, significantly reducing system boot times, application load times, and file transfer durations. Built on the NVMe 1.4 standard, this SSD streamlines the queue structure and latency control for even smoother multitasking and performance consistency.

---

💡 Powered by BiCS5 3D TLC NAND – Reliability Meets Efficiency

Built with BiCS5 3D TLC NAND flash, this SSD achieves higher cell density, lower power consumption, and longer endurance. The 3K Program/Erase (P/E) cycle rating ensures reliable long-term performance and makes it ideal for applications where write endurance is critical—such as industrial computing, surveillance systems, and high-performance workstations.

---

🌡️ Wide Temperature Support for Industrial Applications

Unlike standard consumer SSDs, the TRANSCEND 1TB model is designed with extended temperature tolerance, operating reliably between -20°C to +85°C. This feature makes it suitable for use in harsh environments such as automotive systems, aerospace, military-grade devices, and ruggedized embedded platforms.

---

🔐 Advanced Security: TCG OPAL 2.0 & Microsoft eDrive Support

This SSD is fully compliant with TCG OPAL 2.0 and Microsoft eDrive, offering AES 256-bit hardware encryption to protect sensitive data from unauthorized access. These security protocols make it a perfect match for IT infrastructures requiring full-disk encryption, compliance with enterprise security standards, or support for secure boot processes.

---

🔧 Compact M.2 2280 Form Factor – Versatile Integration

With its M.2 2280 form factor, this SSD fits seamlessly into desktops, laptops, industrial computers, and edge devices without requiring additional cables or power connections. It’s ideal for space-constrained systems that still demand top-tier performance and rugged durability.

---

📊 Product Specification Table

Feature	Description
Capacity	1TB
Form Factor	M.2 2280
Interface	PCIe Gen4x4, NVMe 1.4
Flash Type	BiCS5 3D TLC NAND
Endurance (P/E Cycles)	3,000 cycles
Sequential Read Speed	Up to 7,400 MB/s
Sequential Write Speed	Up to 6,500 MB/s
Temperature Range	-20°C to +85°C (Extended Industrial Grade)
Security	TCG OPAL 2.0, Microsoft eDrive, AES 256-bit encryption
MTBF	Over 2 million hours
Applications	AI, Gaming, Surveillance, Embedded, Military, Edge Computing

---

✅ Why Choose TRANSCEND 1TB M.2 PCIe Gen4x4 SSD?

• Industry-Leading Speed: Maximize your workflows with next-gen PCIe Gen4 performance.
• Industrial-Grade Durability: Withstand extreme temperatures and environmental conditions.
• Trusted Security Standards: Certified with TCG OPAL & eDrive for enterprise data protection.
• Low Power, High Efficiency: Suitable for mobile and fanless systems with optimized thermal design.
• Longevity Guaranteed: Built to last with a 3K P/E cycle NAND and excellent MTBF ratings.

---

🔗 External Resources

• Official Product Page – Transcend Information Inc.
• Learn More About NVMe and PCIe Gen4 from PCI-SIG
• What is TCG OPAL? – Trusted Computing Group

---

🛒 Buy with Confidence

When performance, security, and durability matter most, the TRANSCEND 1TB M.2 PCIe Gen4x4 SSD stands above the competition. Whether you’re building a high-end gaming rig or deploying systems in mission-critical environments, this drive delivers exceptional value and rock-solid reliability.

Check availability at your preferred distributor or contact Transcend Sales for bulk inquiries or technical details.
