AP761 Outdoor Wi‑Fi 6 Access Point – AX1800 Dual‑Radio, Long‑Range Coverage 🌐

The AP761 Outdoor Access Point is a high‑performance, enterprise‑grade Wi‑Fi 6 (802.11ax) solution designed for outdoor and large‑area wireless deployments. Supporting the AX1800 standard with a total device rate of up to 1.775 Gbps, the AP761 delivers reliable, high‑speed wireless connectivity across open spaces such as campuses, streets, parking areas, stadiums, and industrial sites.

Built with a rugged design, smart directional antennas, and long‑range transmission capability, the AP761 ensures stable coverage and excellent performance even in harsh outdoor environments. It supports multiple installation options including wall, ceiling, and T‑rail mounting, making it flexible for diverse deployment scenarios. 📡

Wi‑Fi 6 AX1800 Performance – Faster and More Efficient ⚡

The AP761 complies with the Wi‑Fi 6 (802.11ax) standard and operates in a dual‑radio configuration, working simultaneously on the 2.4 GHz and 5 GHz frequency bands. With advanced 2×2 MIMO on each band, it achieves a combined maximum device rate of 1.775 Gbps, delivering higher throughput and improved efficiency compared to previous Wi‑Fi generations.

Wi‑Fi 6 technologies such as MU‑MIMO, OFDMA, and high‑order modulation enable the AP to handle multiple users more efficiently, ensuring smooth performance in high‑density outdoor environments.

Long‑Range Coverage with Smart Antenna Technology 📶

Equipped with a built‑in smart directional antenna, the AP761 adapts its signal patterns to optimize coverage and reduce interference. With a powerful maximum transmit power of 28 dBm, the access point is capable of delivering wireless coverage at distances of up to 500 meters under ideal outdoor conditions.

This makes the AP761 an excellent choice for wide‑area outdoor coverage, reducing the number of access points required while maintaining strong and consistent connectivity.

High User Capacity – Built for Crowded Environments 👥

The AP761 is designed to support a large number of client devices. It can handle a maximum of up to 1024 access users, with 120 users recommended for optimal performance and user experience.

This high user capacity makes it ideal for public venues, outdoor business spaces, transportation hubs, and educational campuses where many users need simultaneous connectivity.

Flexible Uplink Options – Electrical and Optical Connectivity 🔌

To support diverse network architectures, the AP761 includes:

• 1 × Gigabit Ethernet (GE) electrical port
• 1 × SFP optical port

These dual uplink options provide flexibility for both copper‑based PoE deployments and long‑distance fiber connections, allowing seamless integration into existing outdoor and campus network infrastructures.

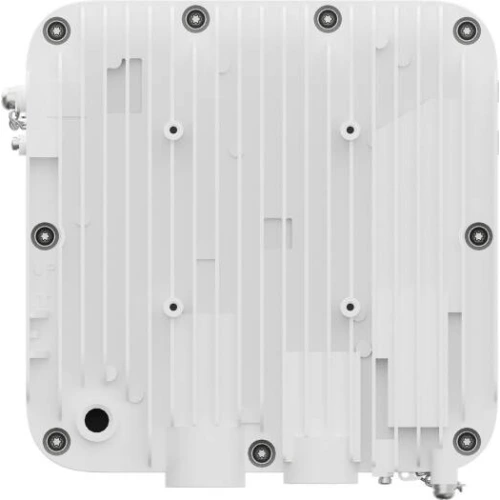

Rugged Outdoor Design and Versatile Installation 🏗️

Designed specifically for outdoor environments, the AP761 features a robust enclosure that protects it from environmental stress. It supports multiple mounting options, including wall, ceiling, and T‑rail installation, making it suitable for a wide variety of structural layouts.

Its compact form factor and professional design simplify installation while ensuring long‑term reliability.

Ideal Deployment Scenarios 🌍

The AP761 Outdoor Access Point is well suited for:

• Campus outdoor coverage
• Public squares and pedestrian streets
• Parking lots and transportation hubs
• Industrial and warehouse outdoor areas
• Hotels, resorts, and amusement parks

Its combination of high throughput, long‑range coverage, and strong user capacity makes it a reliable outdoor Wi‑Fi solution.

Product Specifications 📊

Model	AP761
Product Type	Outdoor Wireless Access Point
Wi‑Fi Standard	Wi‑Fi 6 (802.11ax)
Wireless Class	AX1800
Maximum Device Rate	1.775 Gbps
Radio Configuration	Dual‑radio (2.4 GHz + 5 GHz)
Recommended Access Users	120
Maximum Access Users	1024
Maximum Transmit Power	28 dBm
Uplink Interfaces	1 × GE electrical port, 1 × SFP optical port
Antenna Type	Built‑in Smart Antenna
Maximum Signal Distance	Up to 500 meters
Mounting Options	Wall, Ceiling, T‑Rail

Why Choose the AP761 Outdoor Wi‑Fi 6 Access Point? ✅

The AP761 is an excellent choice for organizations that require high‑speed, long‑range outdoor wireless coverage with strong user capacity. With AX1800 performance, smart antenna technology, flexible uplink options, and support for over a thousand devices, it delivers enterprise‑level Wi‑Fi reliability in demanding outdoor environments.

Learn more about Wi‑Fi standards at
https://www.ieee.orgIEEE,
explore Wi‑Fi 6 technology at
https://www.wi-fi.orgWi‑Fi Alliance,
or read about enterprise wireless design at
https://www.networkworld.comNetwork World.

Build a powerful outdoor wireless network with a Wi‑Fi 6 access point engineered for performance, scale, and reliability. 🌟
